Review laser level FIRECORE F304T-XG

The green FIRECORE F304T-XG 4D laser level, this is the first level from this company with four 360-degree planes. But the thing is that it is almost an identical clone of the FUKUDA MW-94D-4GX laser level for which there is a very detailed review.

That is why there is no sense to write a review about FIRECORE F304T-XG, you can get all the information about the build quality, adjustment, functionality and other things from the review about Fukuda.

The main differences can be distinguished as follows: the price, it is a little bit lower at FIRECORE F304T-XG, the delivery set, the laser modules and the small differences in the declared technical characteristics. Let’s go over these points in a little more detail.

Where to buy a laser level profitably and reliably?

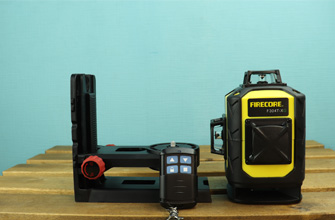

laser level FIRECORE F304T-XG

Technical specifications

  • Projection error: ± 0.3 mm/m

  • Range without/with receiver: Ø 40m*/Ø100m (*depending on degree of illumination)

  • Compensator range: ± 3°

  • Setting time: 2-3 sec

  • Water and dust protection: IP54

  • Laser class and wavelength: II, <1mW, 505-532nm LD Osram

  • Power source: 4000 mAh 3.7V Li-ion battery

  • Tripod thread: 1/4″ on the unit

  • TILT function: yes

  • Operating temperature: -5°C…+45°C

  • Storage temperature: -20°C … +60°C

  • Weight of the device with batteries: 760 gr.

  • Weight of the whole set in the case: 1960 gr.

  • Dimensions with turrets: ~ 12.2 / 10 / 13.6 cm

  • Minimum distance from the bottom horizon:

    to floor – 1.2 cm / to ceiling – 12.4 cm

  • Minimum distance from the upper horizon:

    to floor – 12.7 cm / to ceiling – 0.9 cm

  • Minimum distance from the vertical to the wall: 0.9 cm

  • Distance between lower and upper horizon: 11.8 cm

Laser modules

The page of the official seller states that the FIRECORE F304T-XG laser level is equipped with Osram laser transmitters. But here it is worth saying at once that it is impossible to verify this information.

View of the laser module on the FIRECORE F304T-XG laser level.

Therefore, here we can only believe or not to believe the stated information. However, the laser lines from these modules are virtually no different from those of the Fukuda 4D laser level with Sharp laser modules. You can see the thickness and brightness of the lines in the comparison video below.

You can also see in the video that the modules have different markings, which at the very least indicates that they are indeed different.

Package Contents F304T-XG

The main difference here is in the magnetic wall mount. At FIRECORE F304T-XG it is more universal, and has a micro lift in the range of 8 centimeters.

The magnets on the mount are located on both surfaces. Also, the mounting location of the device rotates around its axis by 360 degrees. In general, who likes what, but the bracket is really handy.

Another big difference is that the Firecore 4D, unlike the Fukuda 4D, comes in a cloth carrying case, not a plastic one like the latter. Here again, it’s up to someone’s taste and color, as they say.

Otherwise, the basic delivery set is very similar.

Complete package in a cloth case of the FIRECORE F304T-XG 4D laser level.

For more details on all the differences between the Firecore 4D and the Fukuda 4D, as well as testing its accuracy, check out the video below.

Comparative video review
