Review laser level FIRECORE F93T-XG

Professional green laser level FIRECORE F93T-XG, which projects three bright closed lines around the perimeter and a full plumb line.

The level is absolutely identical to the F93T-XR model. Except for the color of the laser and its manufacturing technology. LD modules are installed in the review hero. And in red – crystal, both from the Japanese company Sharp.

The level is sold in different sets, including a receiver. For comfortable work on the street during the day.

Where to buy a laser level profitably and reliably?

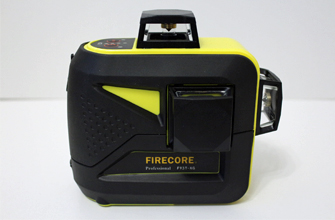

laser level Firecore F93T-XG

It is on the sixth place in the list of the best 3D laser levels with a mechanical compensator and cone prisms.

Technical parameters

  • Accuracy: ± 0.3mm / m
  • Range: 25m * / 50m with receiver (* depends on the degree of lighting)
  • Compensator range: ± 4 °
  • Laser length and class: 505-520 nm, II <1mW
  • Sweep angle: 360 °
  • Working at an angle: yes
  • Tripod thread: 1/4 and 5/8 inches
  • Power supply: Li-ion 2600 mAh, batteries 4АА * 1,5V or power socket
  • Time of continuous work: 7 hours all planes from the battery 2600 mAh
  • Dust and moisture protection: IP54
  • Dimensions: 12.5×6.5×10.7 cm excluding towers
  • Working temperature: from 0°С to + 45°С
  • Storage temperature: from -20°С to + 60°С
  • Minimum distance from the horizon:
  • to the floor – 11.5 cm
  • to the ceiling – 1 cm
  • Minimum distance from vertical to wall: 0.8 cm

Housing laser level

The FIRECORE F93T-XG laser level is just perfect. Without any flaws. All gaps are clearly maintained. The parts are also perfectly paired like the laser level Fukuda MW-94D-4GX.

Case F93T-XG

A powerful rubber jacket, almost all over the body, is able to prevent mechanical damage in small falls.

But despite this protection, the skeletons of the towers are made of plastic. Therefore, when falling on the towers themselves, they are likely to be damaged.

The green version of the level uses laser LD modules from the Japanese company Sharp. Which, in conjunction with a cone prism, give a bright and thin beam at different distances.

See the photo of the beam thickness below

laser LD modules Firecore F93T-XG

The battery compartment and two threads for mounting additional accessories are located at the base of the device. You can evaluate the quality of performance from the photo.

The level of implementation of these elements is really very high. It is in no way inferior to well-known world brands.

laser level Firecore F93T-XG

The battery compartment of the Firecore F93T-XG laser level is closed through a rubber gasket. This indicates a high compliance with the declared protection from dust and moisture.

According to the European classifier – protection code IP54

Rubber gasket on the battery cover F93T-XG

The case of this device is very ergonomic and compact. Like many similar products today.

For example. If you put it next to A small FUKUDA MW-93T-3GX laser level. You can see that they are almost identical. But there is still a feeling that Firecore is slightly smaller.

Comparison Firecore F93T-XG and FUKUDA MW-93T-3GX

Compensator

The Firecore F93T-XG laser level has a high-speed pendulum compensator with magnetic dampers. Automatic installation of the compensator takes just a couple of seconds. When switching on or moving the switched-on device from one point to another. This is an excellent indicator.

Quick installation of the compensator

When installing the device in auto-leveling mode on an inclined surface (namely, with an inclination above 4 degrees). The level activates the built-in visual alarm in the form of rapidly flashing laser lines.

It doesn’t have an audio alert.

In the off state, the compensator pendulum is tightly locked. This allows you not to worry about it with various vibrations during transportation.

Control laser level Firecore F93T-XG

Here everything is exactly the same as the model with the red beam. Only the color of the toggle switch differs. In the F93T-XG, it is green, in accordance with the color of the laser radiation.

Toggle laser level Firecore F93T-XG

Two-position toggle switch. In the “OFF” position, it turns off the level and blocks the compensator. And in the “ON” position-turns on the device and removes the pendulum lock. And switches the laser level to auto-leveling mode. The horizontal plane lights up immediately.

At the top is an informative control panel for planes and additional modes.

There is also a convenient scale of four indicators. Which can be used to predict the remaining battery charge. And understand the remaining amount of time the device is running.

Control panel Firecore F93T-XG

Let’s go directly to the management. To turn the mode on an incline. Hold down the “LASER” button for 2-3 seconds.

The corresponding indicator above the same button will light up. And the horizon will turn on. The battery charge scale indicators will also light up.

TILT function F93T-XG

Plane switching algorithm

Further successive clicks on the “LASER” button will change the planes, namely:

  • 1 press – the horizon is turned off, one front vertical plane is turned on.
  • 2 press – the second lateral vertical is connected. Both verticals are on.
  • 3 press – the horizon is connected. All three planes are lit 360 degrees.
  • 4 press – all planes are turned off. The device is turned off.

The same algorithm for switching planes and in the auto-alignment mode. Except for the 4th press. Here one horizon turns on again and then in a circle.

Oh, by the way. In TILT mode, the lines flash once every 5 seconds. This is another visual alert. It is made in order not to forget that the markup is done manually. A straight line is simply projected at any arbitrary angle.

This mode is not intended for marking horizontal or vertical levels!

This additional information will not be superfluous. And the rare blinking of lines does not interfere with work.

Another arrow button on the right switches the Firecore F93T-XG laser level to the special receiver mode. Which is included in the corresponding package.

Receiver mode indicator F93T-XG

When you press this button, the laser lines start to glow a little dimmer. And an information indicator also lights up above it.

Small life hack. In this mode, the lines are dimmer. This accordingly requires less energy. Therefore, if you have enough line brightness in this mode, you can save a lot of battery power

And more. The receiver operation mode can be activated with either an unlocked compensator or a locked one.

Functionality

The Firecore F93T-XG laser level is a well-designed device. It contains all the necessary modes and features. Which are necessary for high-quality and professional markup.

Judge for yourselves. The maximum variability of supply. Now you don’t have to think about permanent battery supplies. Because there is a lithium-ion battery and an adapter for mains operation. Which is also a charger.

You can also purchase an additional battery and a separate charge to it. Then you can work with the device without stopping.

Firecore F93T-XG

Well-thought-out switching of planes is done in such a way that you can leave either one horizon or one vertical. And this, for a second, is a fairly common situation, and as a result, it saves battery power.

And just as important, reducing the possibility of accidental short-term laser blinding yourself or others.

The presence of a markup mode at any arbitrary angle for non-standard projects. And the ability to work outside in Sunny weather with a receiver up to 50 meters in one direction. All this significantly expands the functionality of this model.

Three 360-degree planes that can be projected as close to the work surface as possible. A full-fledged plumb line and a discharge scale really make working with this 3D level very convenient.

The thickness of the laser line at different distances

So, at one meter from the wall, the thickness is about 1,8 mm.

Line width 1m Firecore F93T-XG

At a distance of 5 meters from the wall, the thickness is just over 1 mm.

Line width 5m Firecore F93T-XG

And at a distance of 15 meters about 3 mm.

Line width 15m Firecore F93T-XG

This is a truly excellent result!

The possibility of mounting on different tripods

The FIRECORE F93T-XG laser level can be attached to all additional accessories available today. Since the base has two high-quality metal bushings with 1/4 and 5/8 inch threads.

The same thread cross-section is used for stanovy screws of various peripherals.

threads F93T-XG

One of these accessories is included in the kit – a rotary base. Which allows you to slowly rotate the device around its axis. And also move to the sides for a short distance.

Comparison table with competitors

Technical detailsFIRECORE
F93T-XG
HUEPAR 603CGFUKUDA
MW-93T-3GX
Accuracy, mm / m± 0.3mm / m± 0.3mm / m± 1mm / 7m
Compensator range, °± 4 °± 4 °± 3,5 °
Range without / with receiver25m* / 50m25m* / 50m20m* / 50m
Dust and moisture protectionIP54IP54IP54
Tilt functionYesYesYes
Working with the detectorYesYesYes
BatteriesLi-ion 2600 mAh / 4АА / networkLi-ion 2600 mAh / 4АА / network2xLi-ion 1500 mAh / 4АА
Defense towersplasticmetalplastic
Working temperature:0°C to +45°C-10°C to +45°C-10°C to +45°C

* – conditional indicator. Directly depends on the degree of lighting.

Contents of delivery

The laser level comes in different sets. You can view them from the official seller by clicking on the button at the very beginning of the review.

My kit includes: Firecore F93T-XG level, rotary base, laser magnetic target, green glasses, 2600 mAh battery, charger, box adapter for battery operation and instructions in English.

Contents of delivery Firecore F93T-XG

Pros and cons

inexpensive, excellent build quality, three green planes of 360°, high accuracy, thoughtful choice of planes, full plumb line, maximum power variability, bright and thin lines, 4-step battery discharge indicator, tilt mode, mode of operation with a receiver 100 meters in diameter, rotary base included, compact, good laser LD modules, battery cover has a rubber gasket.

bad glasses included
